Heat accumulator - standing (400 liters)
Heat accumulator - standing (400 liters)
Heat accumulator - standing (400 liters)
Heat accumulator - standing (400 liters)
Heat accumulator - standing (400 liters)
Heat accumulator - standing (400 liters)

Heat accumulator - standing (400 liters)

  • Select the variables you are interested in to see the final price of the configured exchanger.
5 500,00 zł
/ szt. incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Brand
Parametry techniczne:
Max ciśnienie robocze wymiennika [bar]
6
Max dopuszczalna temperatura wody [ºC]
90
Rodzaj izolacji
Pianka polietylenowa
Grubość izolacji [mm]
50
Gęstość izolacji [kg/m³; +/-10%]
28
Absorpcja wody izolacji
≤3%

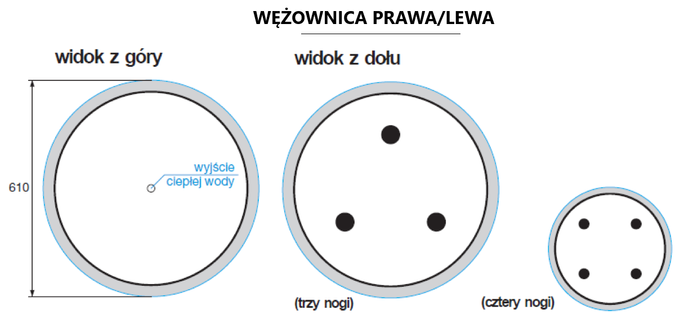

Wymiary wymiennika
Średnica zewnętrzna wymiennika [mm]
610
A [mm] - (patrz zdjęcie wymiarowe)
1810
B [mm] - (patrz zdjęcie wymiarowe)
950
C [mm] - (patrz zdjęcie wymiarowe)
230
Podłączenie wody zimnej i zaworu bezpieczeństwa ze zaworem zwrotnym
1"
Wyjście ciepłej wody
1"
Ilość nóg
4
Waga wymiennika [kg]
56 kg
Kolor obicia:
Niebieski
Zielony
Czerwony

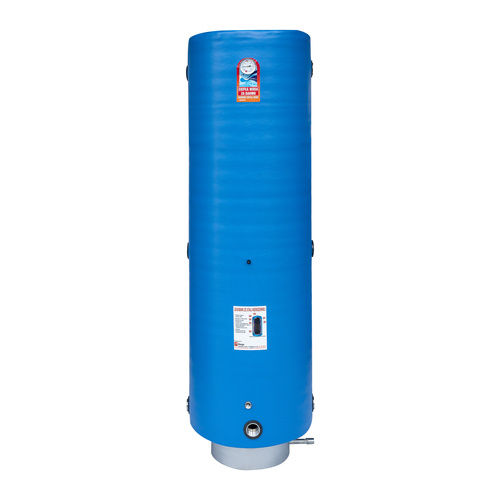

A standing tank model designed as a hot water decanter, eg at a plate heat exchanger, made of 304 grade acid steel. Depending on the capacity, the tank has three (capacity from 160 to 320 liters) or four legs (capacity from 400 to 600 liters). The tank is insulated with 25 mm and 50 mm polyethylene foam, an aesthetic artificial leather cover is placed on it, available in the following colors:

Available colors of artificial leather to choose from:

  • blue
  • green
  • red

Each exchanger is equipped with a mechanical thermometer for constant monitoring of the temperature in the exchanger and a hanger.

Additional options are:

Additional options are:

  • a safety valve with a non-return check in one (gross price: PLN 22.14),
  • hole for 1 ½ "heater (gross price: PLN 182.04)
  • electric heater made of stainless steel with a thermostat (see: heater subpage),
  • cleanout hole (gross price: PLN 182.04),
  • change of the coil diameter (gross price depends on the diameter)
  • exchanger made of stainless steel, grade 316 (extra charge to the gross price of the exchanger: PLN 1,082.4)


This model is available in liters from 60 to 160 liters.

36 miesięczna gwarancja producenta
36 miesięczna gwarancja producenta
