Stainless steel heat accumulator YNOX (480 liters)
Stainless steel heat accumulator YNOX (480 liters)
Stainless steel heat accumulator YNOX (480 liters)
Stainless steel heat accumulator YNOX (480 liters)
Stainless steel heat accumulator YNOX (480 liters)
Stainless steel heat accumulator YNOX (480 liters)

Stainless steel heat accumulator YNOX (480 liters)

  • Select the variables you are interested in to see the final price of the configured exchanger.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Zawór bezpieczeństwa ze zwrotnym w jednym
Otwór na grzałkę 1 1/2”
Otwór czystkowy
Dodatkowe uwagi
Brand
Parametry techniczne:
Max ciśnienie robocze wymiennika [bar]
6
Max dopuszczalna temperatura wody [ºC]
90
Rodzaj izolacji
Wata szklana
Grubość izolacji [mm]
40
Współczynnik przewodzenia ciepła[W/mK] przy temperaturze 100ºC
0,058

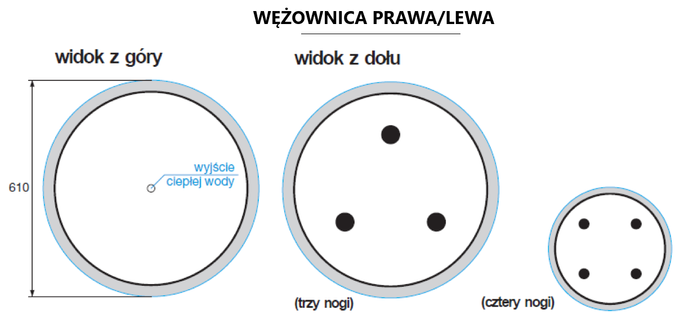

Wymiary wymiennika
Średnica zewnętrzna wymiennika [mm]
610
A [mm] - (patrz zdjęcie wymiarowe)
2110
B [mm] - (patrz zdjęcie wymiarowe)
1000
C [mm] - (patrz zdjęcie wymiarowe)
220
Podłączenie wody zimnej i zaworu bezpieczeństwa ze zaworem zwrotnym
1/2”
Wyjście ciepłej wody
1/2″
Ilość nóg
4
Waga wymiennika [kg]
100 kg

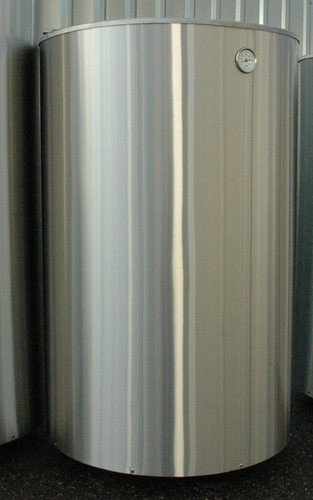

Hot water tank model Ynox standing model made of stainless steel, grade 304. Depending on the capacity, the tank has three (capacity from 160 to 320 liters) or four (capacity from 400 to 600 liters) legs. The tank is insulated with 40 mm thick glass wool, covered with 0.8 mm thick ground sheet metal on the outside. The tray is sold in a set with a water temperature measuring thermometer.



Additional options are:

  • a safety valve with a non-return check in one (gross price: PLN 22.14),
  • hole for 1 ½ "heater (gross price: PLN 182.04)
  • electric heater made of stainless steel with a thermostat (see: heater subpage),
  • cleanout hole (gross price: PLN 182.04),
  • change of the coil diameter (gross price depends on the diameter)


This model is available in liters from 220 to 600 liters.
