Heat exchanger with two stainless steel coils grade 304 (350 liters)
- Select the variables you are interested in to see the final price of the configured exchanger.
Brand
Parametry techniczne:
Max ciśnienie robocze wymiennika [bar]
6
Max dopuszczalna temperatura wody [ºC]
90
Materiał płaszcza zewnętrznego
stal nierdzewna 1,5mm gat. 304L
Obudowa zewnętrzna
Stal nierdzewna szlifowana
Rodzaj izolacji
Pianka polietylenowa
Wężownica
Materiał wężownicy
Stal nierdzewna gat. 304L
Średnica wężownicy [mm]
16×1,5
Max ciśnienie robocze przy temperaturze 100°C
ø16×1,5mm - 213,8 bar
ø22×1,5mm - 155,5 bar
Wymiary wymiennika

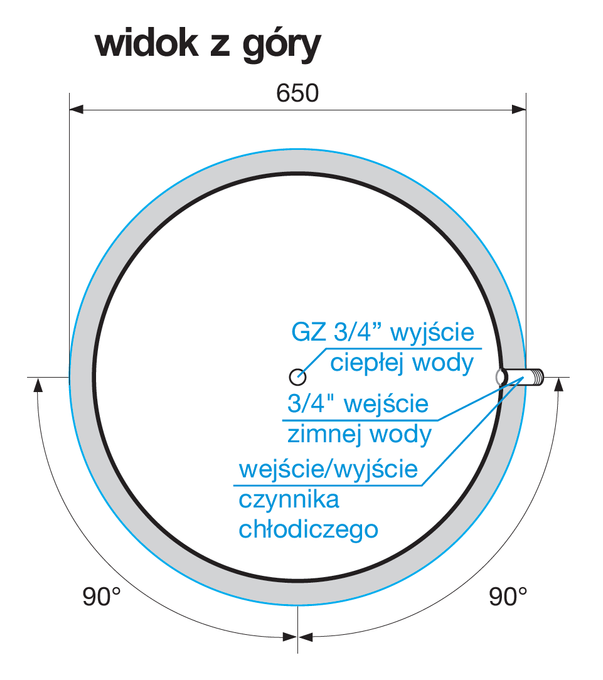

Średnica zewnętrzna wymiennika [mm]
650

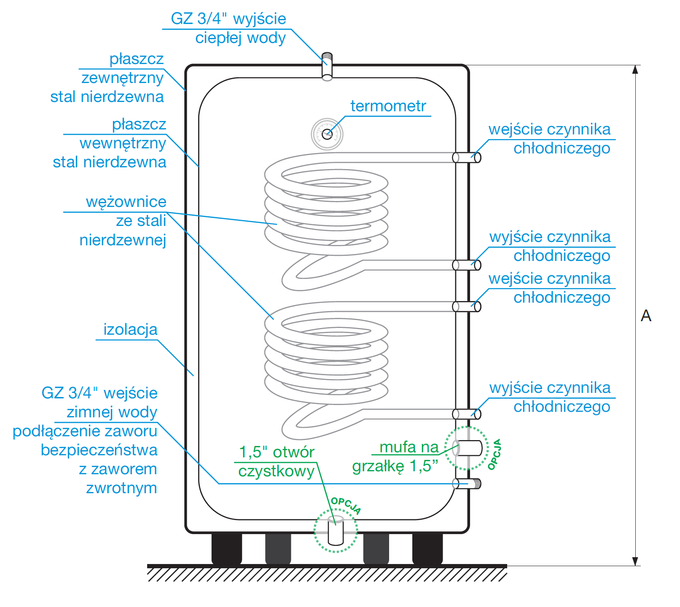

A [mm] - (patrz zdjęcie wymiarowe)
1610

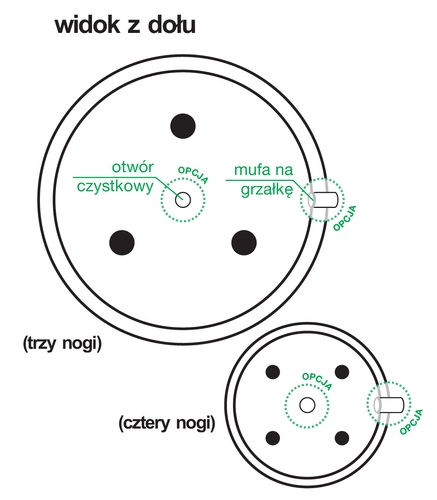

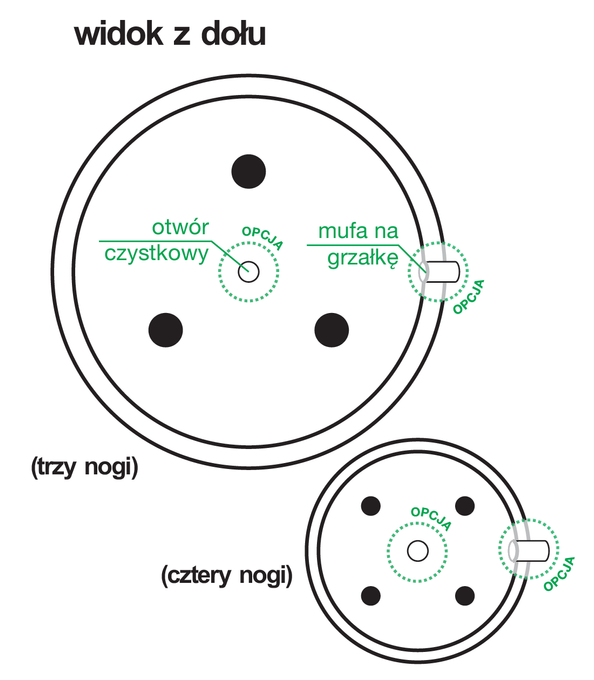

Ilość nóg
4
Waga wymiennika [kg]
92 kg
Kolor obicia:
Niebieski
Zielony
Czerwony

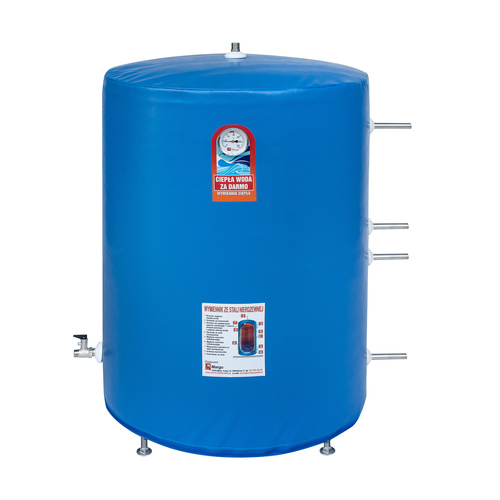

The standing Ynox heat exchanger model with two coils is made of stainless steel, grade YNOX 316. The exchanger, depending on the capacity, has three (capacity from 160 to 320 liters) or four (capacity from 400 to 600 liters) legs. The tank is insulated with 40 mm thick glass wool, covered with 0.8 mm thick ground sheet metal on the outside. The tray is sold in a set with a water temperature measuring thermometer.
Additional options are:
- a safety valve with a non-return check in one (gross price: PLN 22.14),
- hole for 1 ½ "heater (gross price: PLN 182.04)
- electric heater made of stainless steel with a thermostat (see: heater subpage),
- cleanout hole (gross price: PLN 182.04),
- change of the coil diameter (gross price depends on the diameter)
This model is available in liters from 220 to 600 liters.
Table of technical parameters of the Ynox storage tank.
| Type / capacity [L] | Number of legs | Dimensions [mm] - A [see technical picture] |
Coil diameter [mm] | Coil length [m] | Weight [kg] |
|---|---|---|---|---|---|
| YDD-220 | 3 | 1110 | 16×1,5 | 6 | 66 |
| YDD-290 | 3 | 1380 | 16×1,5 | 6 | 81 |
| YDD-350 | 4 | 1610 | 16×1,5 | 6 | 92 |
| YDD-480 | 4 | 2110 | 22×1,5 | 6 | 108 |
| YDD-600 | 4 | 2600 | 22×1,5 | 6 | 130 |
